Engineered and flexible solid wood panels for curved architectural structures
The demand for organic, flowing forms in contemporary architecture and interior design has driven innovation in materials science. Our flexible solid wood panels meet this need, combining the traditional beauty of wood with the flexibility to fit curved walls, cabinets and custom decorative elements.
Material composition and characteristics
Cross-laminated construction
5-7 layers of rotary-laminated hardwood veneer (oak, walnut or ash)
The fibers are arranged alternately at 30° intervals, allowing greater freedom in bending.
Maximum radius of curvature: 400 mm (concave) / 600 mm (convex)
Surface properties
Straight vertical fibers (groove depth: 0.8-1.2 mm)
Additional microgroove for better light diffusion.
Mechanical properties
MOR (Modulus of Rupture): 68-72 N/mm²
MOE (Modulus of Elasticity): 12,500–14,000 N/mm²
Moisture stability: ±0.3% dimensional change rate at 30-80% relative humidity
Manufacturing Process
Sustainable Sourcing
FSC-certified European hardwood forests
Low-VOC, formaldehyde-free adhesives (EN 717-1 compliant)
Precision Engineering
Hydraulic cold-pressing at 18-22°C (64-72°F)
72-hour conditioning period for stress relaxation
Post-Processing
UV-cured matte finish (Class 1 abrasion resistance per EN 438)
Pre-drilled fastener channels for concealed mounting
Technical Specifications
| Parameter | Value/Description |
|---|---|
| Panel Thickness | 18mm (±0.5mm tolerance) |
| Standard Dimensions | 2440mm x 1220mm (custom lengths available) |
| Minimum Bend Radius | 400mm (static) / 600mm (dynamic load) |
| Fire Rating | Class B-s1,d0 (EN 13501-1) |
| Acoustic Performance | STC 34-38 depending on backing material |
Production process
Sustainable procurement
Preservation of FSC-certified European hardwood forests
Low VOC, formaldehyde-free adhesive (compliant with EN 717-1)
Precision engineering
Cold hydraulic press at 18-22°C (64-72°F)
72-hour stress training
Post-processing
UV-cured matt finish (abrasion resistance class 1 according to EN 438)
Pre-drilled mounting holes for discreet installations
Technical specifications
Parameter value/description
Panel thickness 18 mm (tolerance ±0.5 mm)
Standard dimensions: 2440 mm x 1220 mm (length can be customized)
Minimum bending radius: 400 mm (static) / 600 mm (dynamic load)
Fire resistance class B-s1,d0 (EN 13501-1)
Sound insulation performance STC 34-38 (depending on the substrate material)
Architectural applications
Commercial
Curved reception desk
R-Edge wall
Circular screen for conference rooms
Residential design

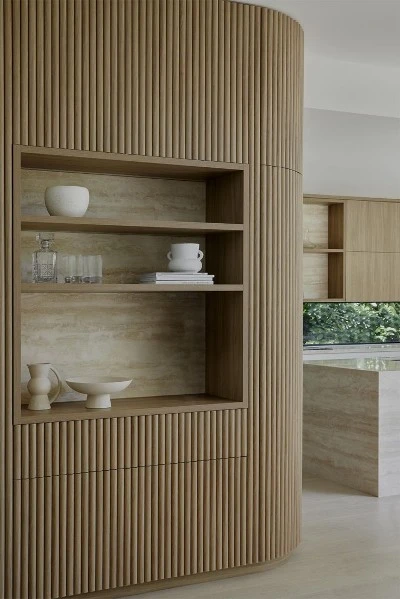

Arched cabinet front

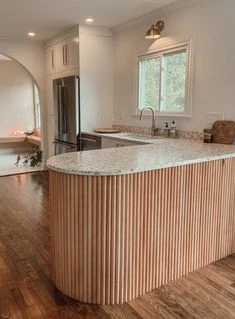

Corrugated kitchen island
Installation instructions
Substrate preparation: Requires a moisture-resistant substrate (DM ≦ 18%).
Adhesive system:
MS polymer for permanent installation
Removable silicone for tenant convenience
Climate considerations:
During application, maintain humidity between 40-60%.
Leave a gap of 2 mm per metre.
Maintenance procedures
Cleaning: pH-neutral wood cleaner (do not use abrasive tools)
Refinishing: Light sanding (240 grit) + touch-up (every time) 5-8 years
Damage repair: Epoxy wood filler compatible with original finish.
This engineered wood solution blurs the line between typical natural materials and modern geometric complexity. Its technical parameters meet architectural requirements while maintaining the natural tactile sensations and warmth of wood.
Detailed CAD files, material safety data sheets or acoustic test reports can be found on our technical documentation portal.
Please contact us for more details.
